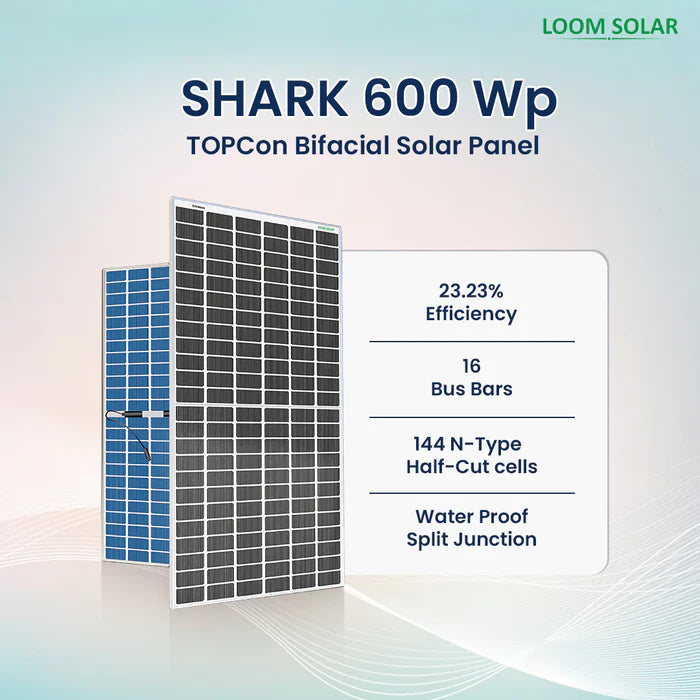

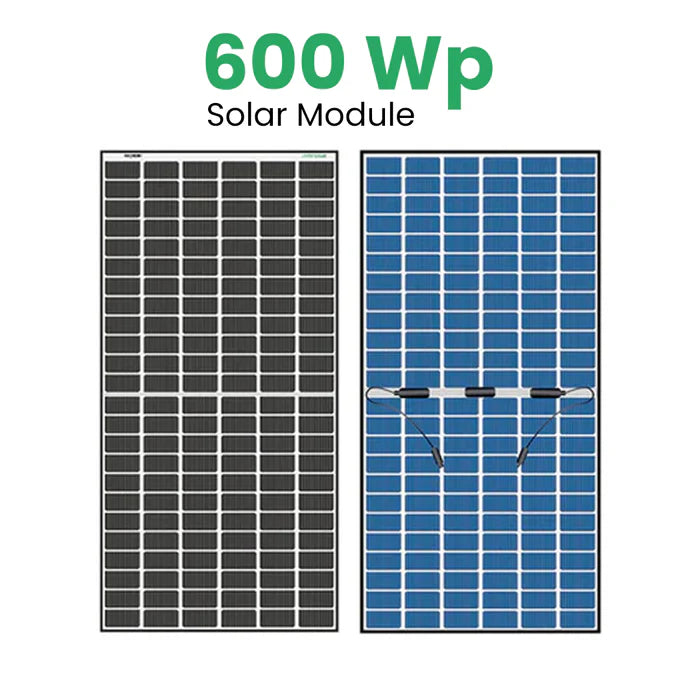

Loom Solar Panel - SHARK 600 Wp N-Type TOPCon Bifacial 16BB (Pack of 2)
Rs. 30,000.00
The Loom Solar SHARK 600 Wp panel with advanced TOPCon technology delivers an impressive peak power output of 600 Wp, with a high conversion efficiency of up to 23.23%. Its bi-facial design enables the rear side to generate additional power, increasing overall efficiency to 25% and boosting total output to 700 Wp. This advanced solar module features 144 cells and 16 busbars, ensuring superior energy production and reliability. It consists of a junction box that is MC4 IP68-rated, ensuring better protection. Designed for maximum performance, the SHARK 600 Wp panel is an excellent choice for high-efficiency solar installations.

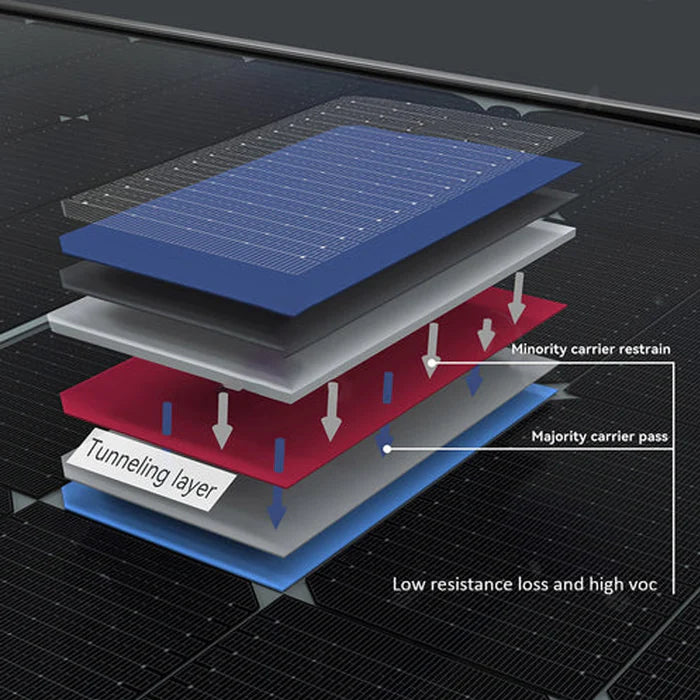

- Technology – N-Type TOPCon Bifacial, generates power from both sides, boosting overall performance and increasing efficiency.
- High Efficiency – Achieves 23.23% module efficiency for optimal energy conversion.
- Durable & Weather-Resistant – Built to perform efficiently in diverse environmental conditions with an IP68 rating for superior waterproofing and dust protection.
- Long-Lasting Performance – Provides higher lifetime energy output compared to traditional panels, offering a reliable and sustainable energy solution for the long term.
- Warranty – Comes with a 10-year manufacturing warranty and a 30-year performance warranty.
Electrical Specifications:
|
Module Type |
SHARK 600 Wp Bifacial |
|
Maximum Power (Pmax) [Wp] |
600 |
|
Operating voltage [V] |
34.6 |
|
Maximum Power Voltage (Vmp) [V] |
44.78 |
|
Maximum Power Current (Imp) [A] |
13.14 |
|
Open Circuit Voltage (Voc) [V] |
51.19 |
|
Short Circuit Current (Isc) [A] |
14.13 |
|
Module Efficiency [%] |
23.23 |
|
Additional Features |
Better Weak Illumination Response |
|
ZERO LID (Light Induced Degradation) |
Mechanical Specifications:
|
Solar Cell Type |
N-Type |
|
Panel Technology |
TOPCon 182 x 91 mm |
|
Space Required |
7.42 x 3.72 =24 sq ft |
|
Number of cells |
144 Cells (12x6) (12x6) |
|
Number of Bus bar |
16BB |
|

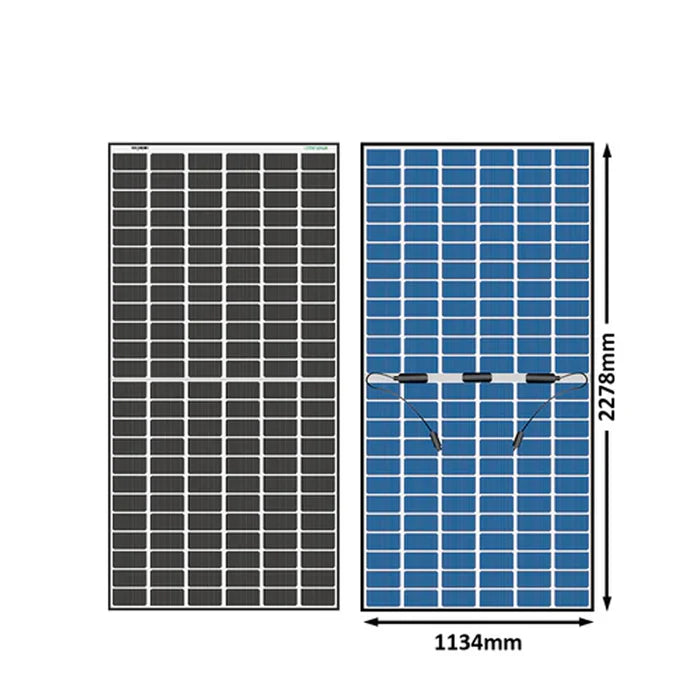

Module Dimension (L x W x D) |
(2278 x 1134 x 30) mm |
|
Weight |
30 kg |
|
Double Glass |
AR-coating toughened glass, 2+2 mm |
|
Frame |
Black Anodized Aluminium |
|
J-Box |
Split Junction-Box (IP68) |
|
Cable |
400 mm, 4 m² |
|
Connector |
MC4 IP68 compatible |
|
Maximum Test Load, Push/Pull |
5400 Pa / 2400 Pa |
|
Additional Features |
Better temperature coefficient |
|
10-30% Additional Power/Energy generation |
Shipping Details
|
Weight (Including Cases) |
31 kg |
|
Dimensions (L x W x D) |
(2278 x 1134 x 30) mm |
