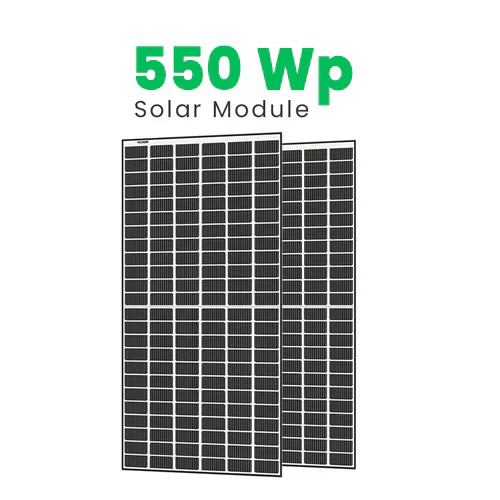

Loom Solar Mono PERC Half-Cut Shark 550 Wp, 144 Solar Cells PV Module (Pack of 2)

Loom Solar Mono PERC Half-Cut Shark 550 Wp, 144 Solar Cells PV Module (Pack of 2)

Rs. 24,000.00

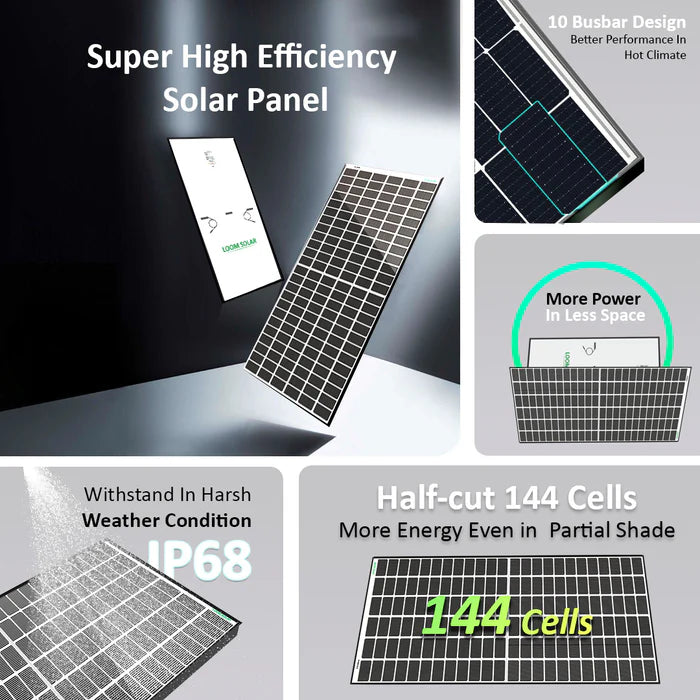

SHARK 550 Wp solar panel features advanced technology with 144 Mono PERC Half-Cut Solar cells. The performance of this panel is highly efficient in cloudy and foggy weather. This panel is also available in a bi-facial version which can absorb sunlight energy from both sides, enhancing energy generation by producing 30%–50% more power compared to traditional mono-facial panels, even in spaces with limited occupancy. It consists of MC4 IP68-rated compatibility, providing superior waterproofing and dust protection for long-term reliability. Its Half-Cut design reduces the impact of shadows on the panel. This solar panel is compatible with both standalone and on-grid systems.

  • Technology – Mono PERC (Monocrystalline Passivated Emitter and Rear Contact), Half-Cut solar cells for better efficiency, and higher energy output.
  • Excellent Reliability – Built with premium-quality materials and advanced technology, ensuring consistent performance and durability even in challenging environments.
  • High Efficiency – Up to 21.35% module efficiency for superior energy conversion.
  • Lower Degradation – Designed for minimal performance loss, ensuring consistent energy generation over time.
  • Better Low-Light Performance – Efficiently generates energy even in cloudy and low-light conditions.
  • Premium Warranty – Backed by a 10-year manufacturing warranty and a 25-year performance warranty.

Product Unboxing Video





Electrical Specifications

Module Type

SHARK 550

Power (Pm) in watts

550

No. of Cells

144

No. of Bus Bars

10

Voltage at maximum power (Vmp) in volts

42.74

Current at maximum power (Imp) in Amps

12.89

Open Circuit Voltage (Voc) in volts

49.60

Short Circuit Current (Isc) in Amps

13.72

Maximum system Voltage (VDC)

1500

Module Efficiency (%)

21.35%

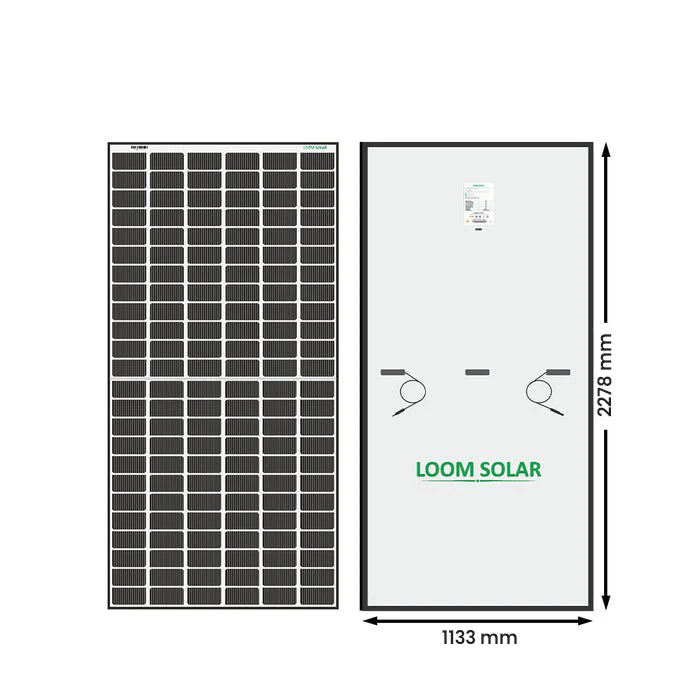

Mechanical Specifications

Junction Box

IP68 Rated With Diode

Glass

High Transmission Low Iron Tempered Solar Glass

Cells Encapsulate

Ethylene Vinyl Acetate (EVA) - FC/UFC

Back Sheet

Composite Film - White

Frame

Black / Silver Anodized Aluminium Frame with Twin Wall Profile

Mechanical Load Test

Sustain Heavy Wind & Snow Loads (2400 Pa & 5400 Pa or 550 Kg /m2)

Max Series Fuse Test

30 A

Module Weight (Kg)

29 kg

Technology

Mono PERC

Annual Electricity Generation (kWh)

1160
