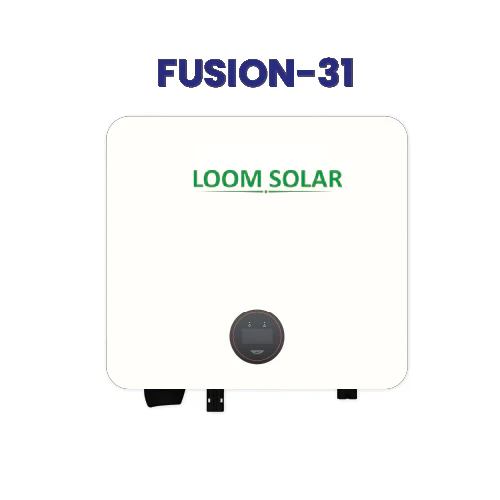

FUSION 3 kW Single Phase On-Grid Solar Inverter
Rs. 20,000.00
Introducing the Fusion 3 kW, single-phase on-grid solar inverter designed for India's high temperatures. With features such as DC reverse-polarity and insulation monitoring, AC short circuit and output over-voltage protection, and a Type II surge protection option, you are guaranteed a safe and efficient solar power system. Plus, the better heat sink design ensures optimal performance, even in extreme temperatures.
Designed for quick grid disconnection during utility grid outages, the Grid Tie Inverter safeguards line workers tasked with restoring power from potential harm.
Key Features
- Wall Mounted
- LCD Display with one-button operation.
- Zero Export (optional),
- Safety Protection - Anti-Islanding, Ground Fault Monitoring
- Mobile and website-based remote Monitoring- free for 25 years.
Video

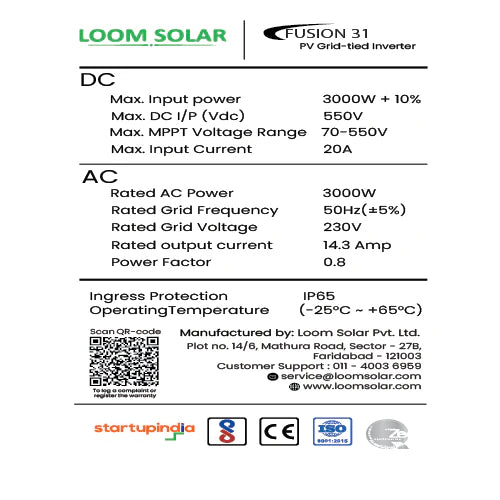

Key Technical
|
Model Name |
Fusion31FE |
| System Rating |
3 kW, Single-Phase |
|
Maximum Solar Panel Connection (Watts) |
3300 Watts |
|
Efficiency |
97% |
|
Feed-in Phase |
Single Phase |
|
Topology |
Non-isolated |
|
Number of MPPT Controllers |
1 |
|
Noise |
< 30dBA |
|
Weight (kg) |
5.4 Kg |
|
Dimensions [L * H * W] mm |
290 * 220 * 116 |
