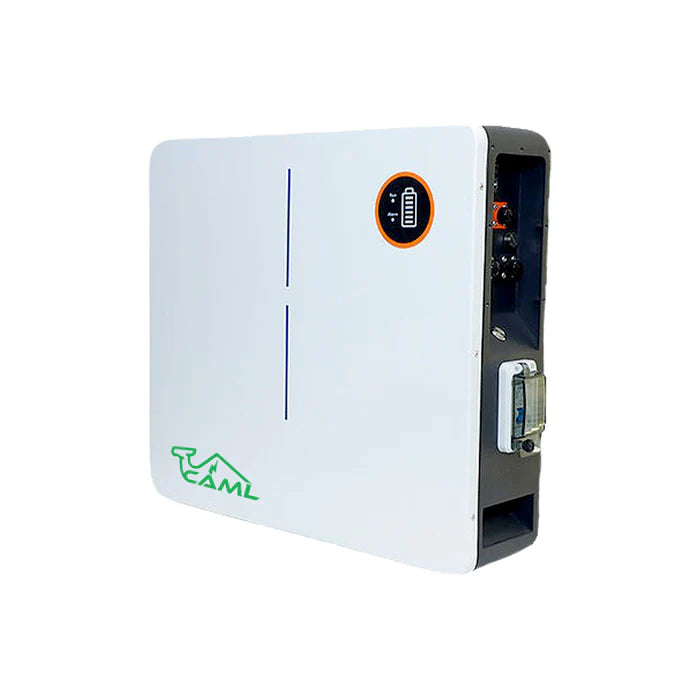

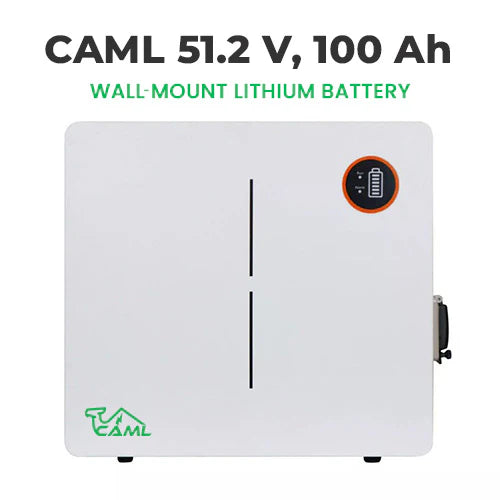

CAML 51.2 V 100 Ah, 5.12 kWh LiFePO4 Battery - Wall Mount
Rs. 115,000.00

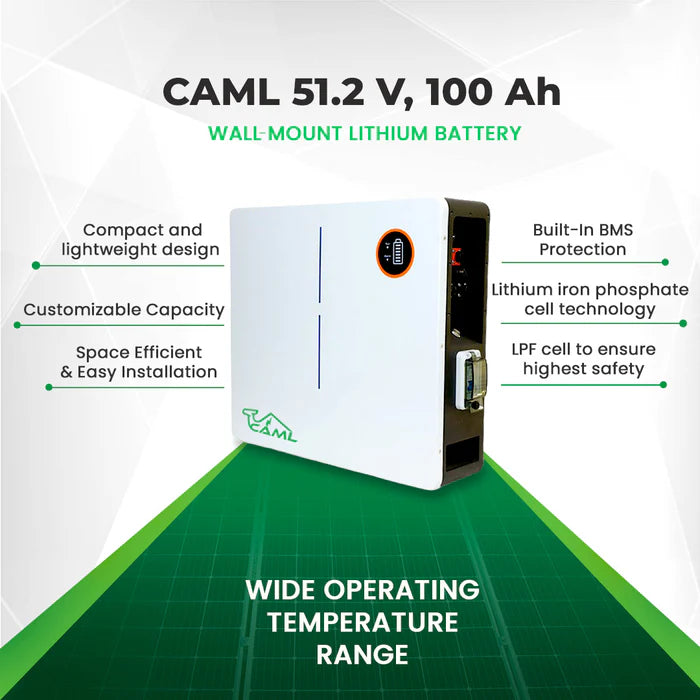

CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance. CAML 51.2 V 100 Ah Lithium-ion battery provides a Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 6000 charge cycles and fast charging capabilities, allowing the battery to charge fully in just 2-4 hours. This lithium battery is easy to maintain and carry and also offers a space-saving storage solution, ideal for both domestic and commercial applications. Its durability, long lifespan, and performance make it a superior choice over traditional Lead-Acid SMF batteries. This battery operates efficiently in a wide temperature range and weighs almost one-quarter of traditional SMF and Lead-Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.
-
Fast Charging - Battery gets fully charged 100% in just 2-3 hours.
- Longer life - Compared to Lead acid and SMF, Lithium battery has a 6,000+ cycles. life, which translates into 10-15 years of usable life.
- Lightweight - The weight of a lithium battery is 1/4 that of Other comparable batteries, such as SMF and lead acid batteries.
- Zero Maintenance- Free, no memory effect.
- Expandable - Battery bank Expandable in parallel.
- Safe - Safest battery with modular design.
- Temperature Range - Wide operating temperature range.
- Installation - Quick and Easy Installation.
Installation Video
Features
Applications
Technical Specifications
|
Manufacturered by |
Loom Solar Pvt. Ltd. |
|
Designed by |
Loom Solar Pvt. Ltd. |
|
Rated Capacity |
5120 Wh / 51.2 V / 100 Ah |
|
Voltage |
51.2 V |
|
Charging Cut-off Voltage |
56.16 V |
|
Recommend Charge Current |
0.2 C, 20 A |
|
Max. Charge Current |
0°-15°C: 20 A, 15°-45°C: 50 A |
|
Operating Temperature Range |
-20°C to 65°C |
|
Environment |
Indoor |
|
Max. Output Power |
5.0 kW |
|
Installation |
Wall-Mount |
|
Model Number |
CAML10051-WM |
|
Communication Port |

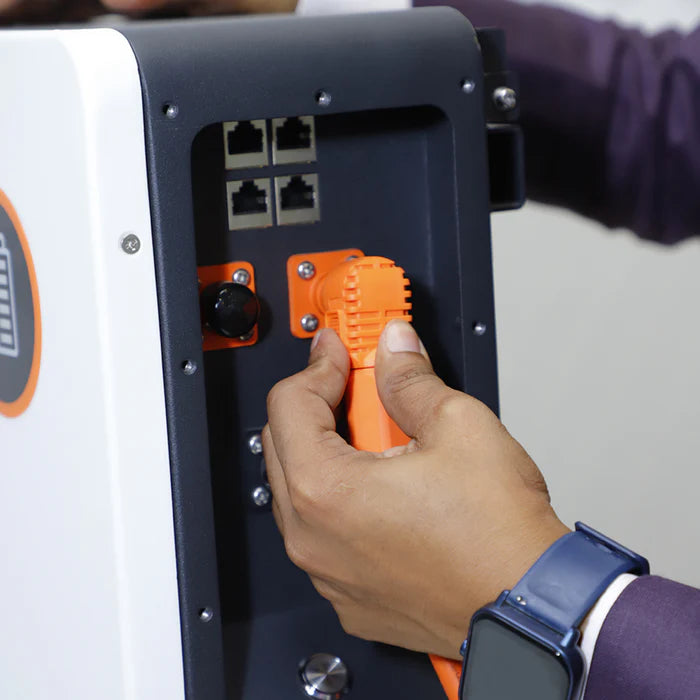

CAN / RS-485 for Inverter Communication |
|
Protection Class |
IP65 |
|
Grid connection |
Off-grid, Hybrid grid |
|
Product name |
CAML Wall-Mount Lithium-ion Battery |
|
Cell Technology |
Lithium Iron Phosphate (LiFePO4) |
|
Cycle life |
6000 Times @ 80% DoD |
|
Warranty |
5-year |
|
Protection |
Smart BMS Protection with Communication |
|
Efficiency |
98% |
Certifications
UN38.3, RoHS, MSDS, CE
Service
Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase.

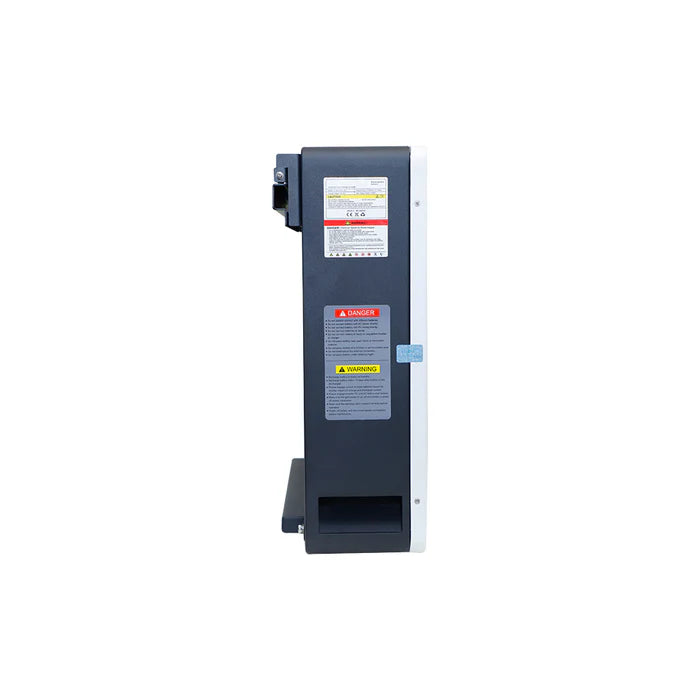

Caution📢
- Do not throw batteries into the fire.
- Do not short-circuit.
- Do not heat or disassemble batteries.
- Never keep batteries near sources or in high temperatures.
- Read the application's instruction manual carefully before use.
- Charging the battery with 50A constant until 56.16V at room temperature 20 degrees C+/-5 degrees C.
Warning⚠️
DANGER! Chemical Hazard & Shock Hazard
- Do not disassemble or repair the battery by yourself.
- Do not drop, deform, impact, cut or spear the battery with a sharp object.
- Do not apply strong pressure to the batteries or handle them roughly.
- Keep batteries away from direct sunlight, high temperature and high humidity.
- Please keep the battery away from liquid.
- Keep batteries out of reach of children.
- If you notice signs that the battery has a problem, such as overheating, odour, leaks, bulging, or a change in colour/shape, shut off the device and move it away from anything that can catch on fire.
- Avoid charging or storing batteries at high temperatures. High temperatures might ignite the battery and cause a fire.
Danger❗
- Do not parallel connect with different batteries.
- Do not connect the battery to AC power directly.
- Do not connect the battery with PV wiring directly.
- Do not connect batteries in series.
- Do not connect the battery to a faulty or unqualified inverter or charger.
- Do not place the battery near an open flame or flammable material.
- Do not place the battery in a child or pet-touchable area
- Do not short-circuit the external connection.
- Do not place the battery under direct sunlight.
Warning⚠️
- Recharge the battery every six months.
- Recharge the battery within 10 days after the battery is fully discharged.
- Please engage the correct multiple batteries based on the inverter's maximum charge and discharge current.
- Make sure the grid power is cut off and the battery is powered off before installation.
- Make sure the earthing cable is connected correctly before operation.
- Power off the battery and disconnect the power connections before maintenance
Shipping Details
|
Weight |
48.45kg |
|

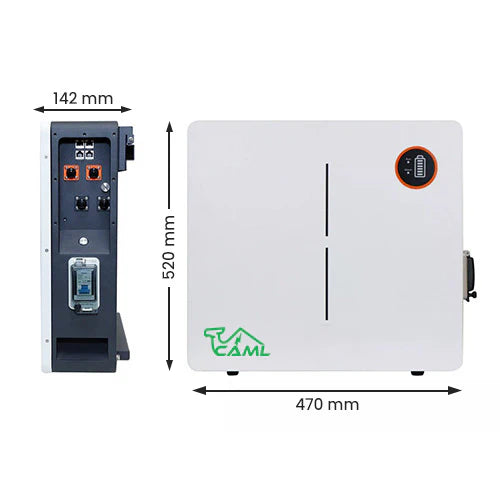

Dimensions (LxWxH) |
520x470x141.5 mm |
